液晶顯示控制板特性 :


液晶控制電路板設計為宇睿之主要核心,研發適用於各尺寸螢幕之控制板。宇睿的競爭優勢在於擁有工業顯示器控制系統核心技術研發能力,結合工業電腦關鍵技術與軟軔體研發能力,面對特殊環境或者顯示器控制介面需求之產品提供各式方案,及更完整的研發服務。並持續從事新產品之創新與設計,以合理成本製造優質產品,持續製造可信賴的產品。

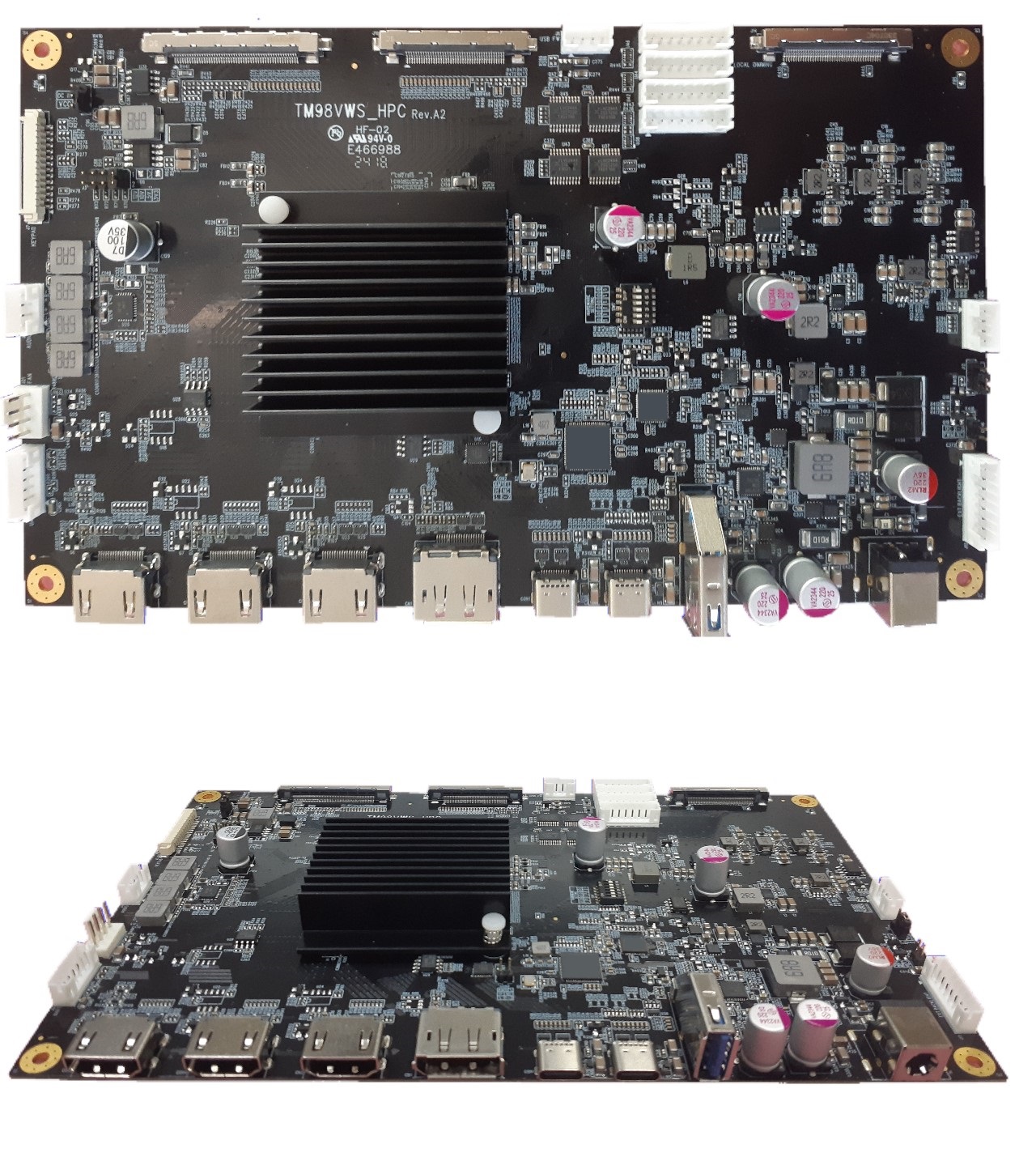

TM98VWS_HPC


TM98VWS_HPC








★ DC Input : +12VDC(+24VDC) / 5A
★ Panel Power : 3.3V , 5V , 10V , 12V
★ Size : 200(L) x 120(W) x 15(H) mm

Input:

★ HDMI 2.0 x 3 , video input resolution up to 3840x2160@60Hz
★ DisplayPort 1.4(HBR3) x 1 , video input resolution up to 3840x2160@165Hz
★ USB Type-C Upstream port x 1 , DP Alt. Mode 1.0(Video+Data), PD Charging(Up To 40W)
★ USB 3.1 Gen x 1 Type-A(Downstream)
★ USB Type-C port x 1 , Support PD Adapter only

Output:

★ Supports panel resolution up to 3840x2160@165Hz
★ 16 pairs Vx1@3Gbps
★ eDP HBR/HBR2/HBR3 supports up to 16-lane with 2.7Gbps , 5.4Gbps , 8.1Gbps link rate
★ Speaker: 2x5W(8Ω)/12V or 2x10W(8Ω)/24V
★ 576 zones local dimming with 4 SPI channels

Other Support:

★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ Multi-Panel Selectable
★ USB 2.0 OTG for FW upgrade (HW Option)
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

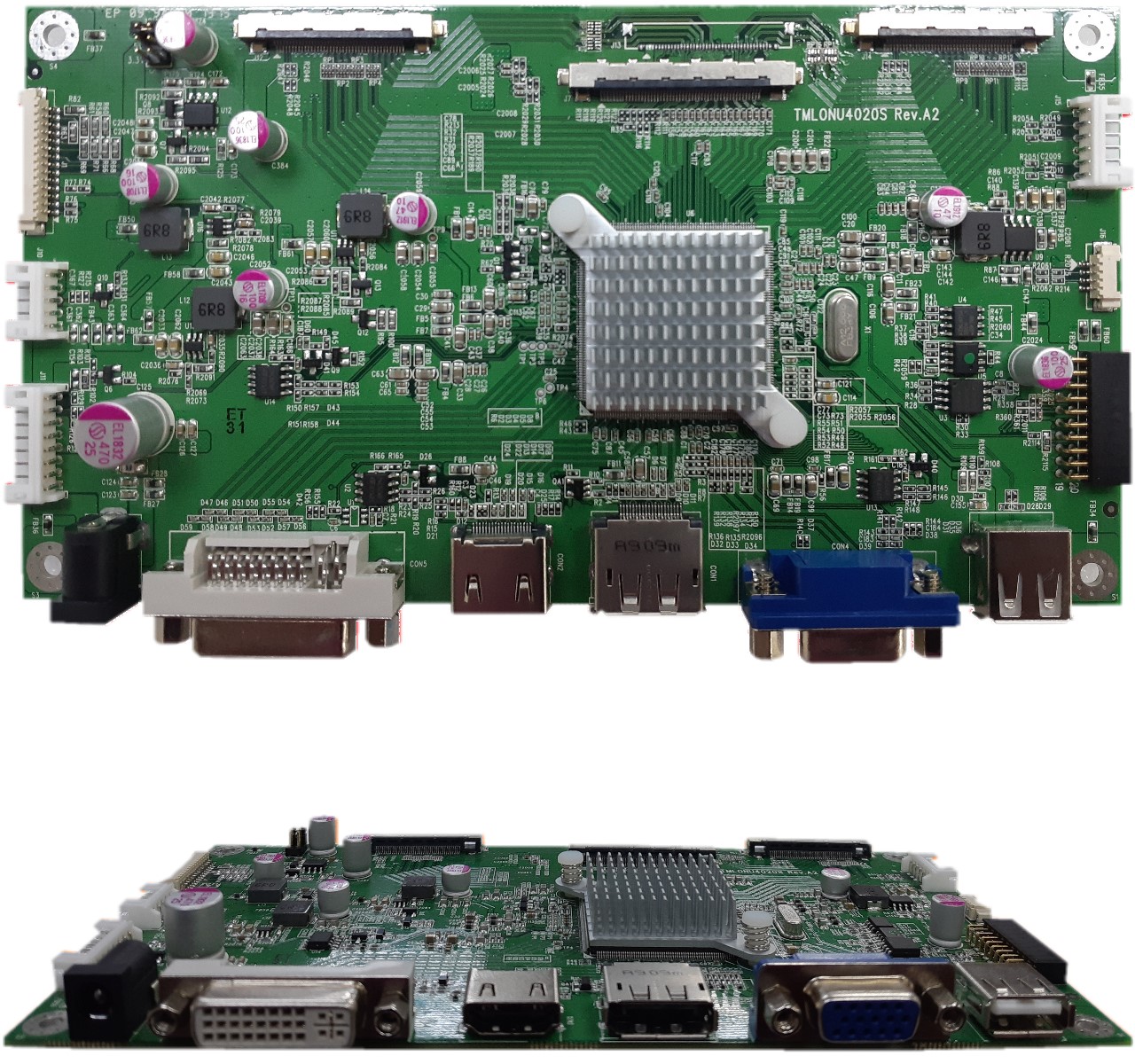

TMLONU4020S


TMLONU4020S




★ DC Input : +12VDC / 3A
★ Panel Power : 3.3V , 5V , 12V
★ Size : 175(L) x 95(W) x 15(H) mm

Input:

★ VGA x 1 , video input resolution up to 1920x1080@60Hz
★ DVI(Dual-Link) x 1 , video input resolution up to 2560x1440@60Hz
★ HDMI 2.0 x 1 , video input resolution up to 3840x2160@60Hz
★ DisplayPort 1.2a x 1 , video input resolution up to 3840x2160@60Hz
★ USB 2.0 x 1 , OTG for FW upgrade

Output:

★ Supports panel resolution up to 3840x2160@60Hz
★ 8 pairs Vx1@3Gbps
★ eDP HBR/HBR2 supports up to 8-lane with 2.7Gbps , 5.4Gbps link rate
★ 4-ch LVDS QHD(2560x1440@60Hz)

Other Support:

★ Audio (HW Option)
★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

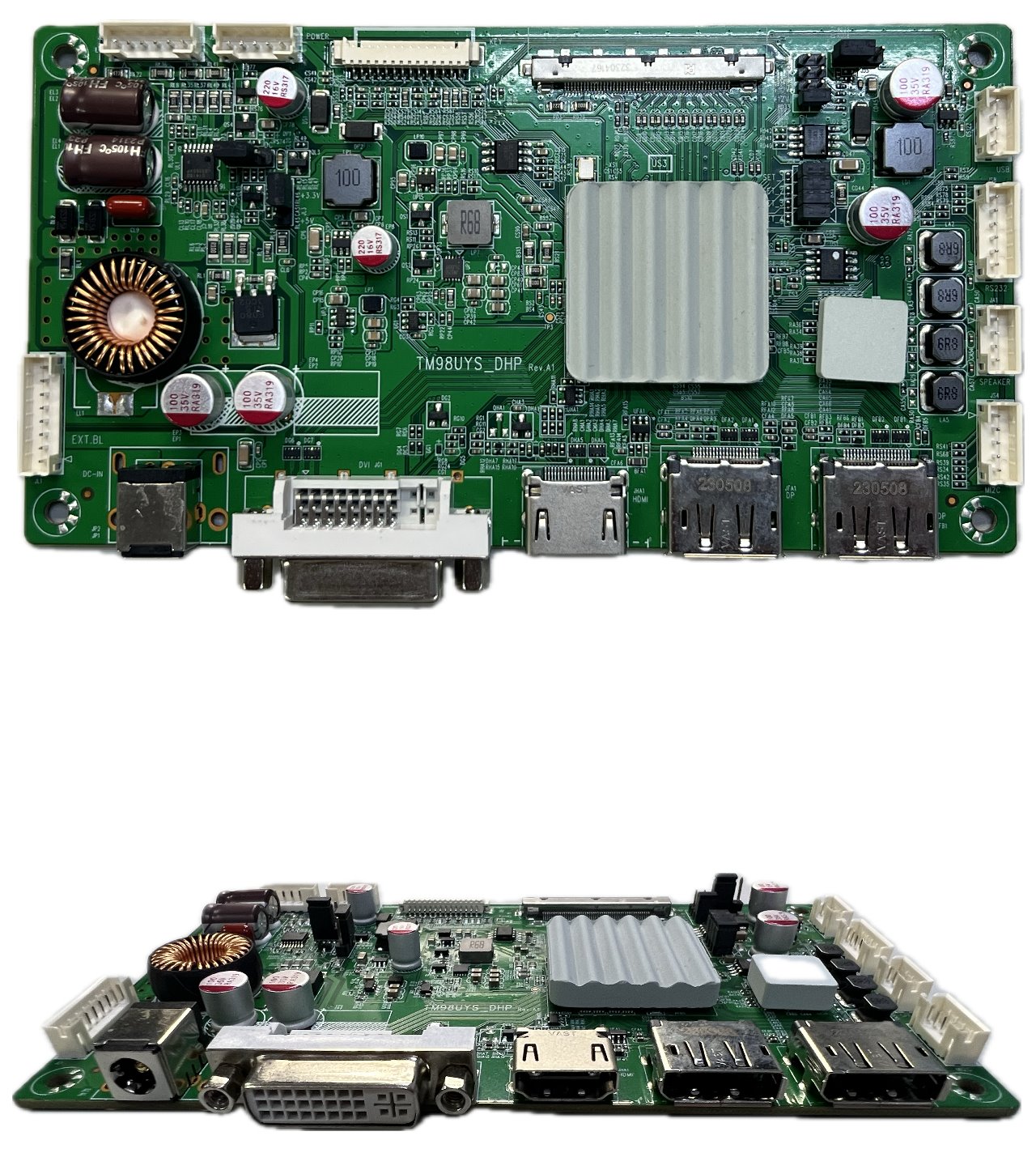

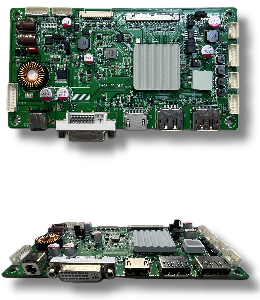

TM98UYS_DHP


TM98UYS_DHP




★ DC Input : +12VDC(+24VDC) / 3A
★ Panel Power : 3.3V , 5V , 10V , 12V
★ Size : 150(L) x 80(W) x 15(H) mm

Input:

★ DVI(Single-Link) x 1 , video input resolution up to 1920x1080@60Hz
★ HDMI 2.1 x 1 , video input resolution up to 3840x2160@60Hz
★ DisplayPort 1.4(HBR2) x 2 , video input resolution up to 3840x2160@60Hz

Output:

★ Supports panel resolution up to 3840x2160@60Hz
★ 8 pairs Vx1@3Gbps
★ eDP HBR/HBR2 supports up to 8-lane with 2.7Gbps , 5.4Gbps link rate
★ Speaker: 2x5W(8Ω)/12V or 2x10W(8Ω)/24V
★ LED backlight driver support up to 4 LED strings(45W Max.)

Other Support:

★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ Multi-Panel Selectable
★ USB 2.0 OTG for FW upgrade (HW Option)
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

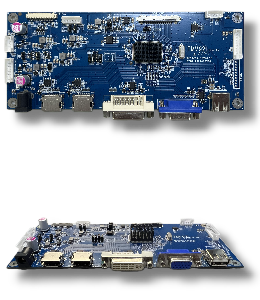

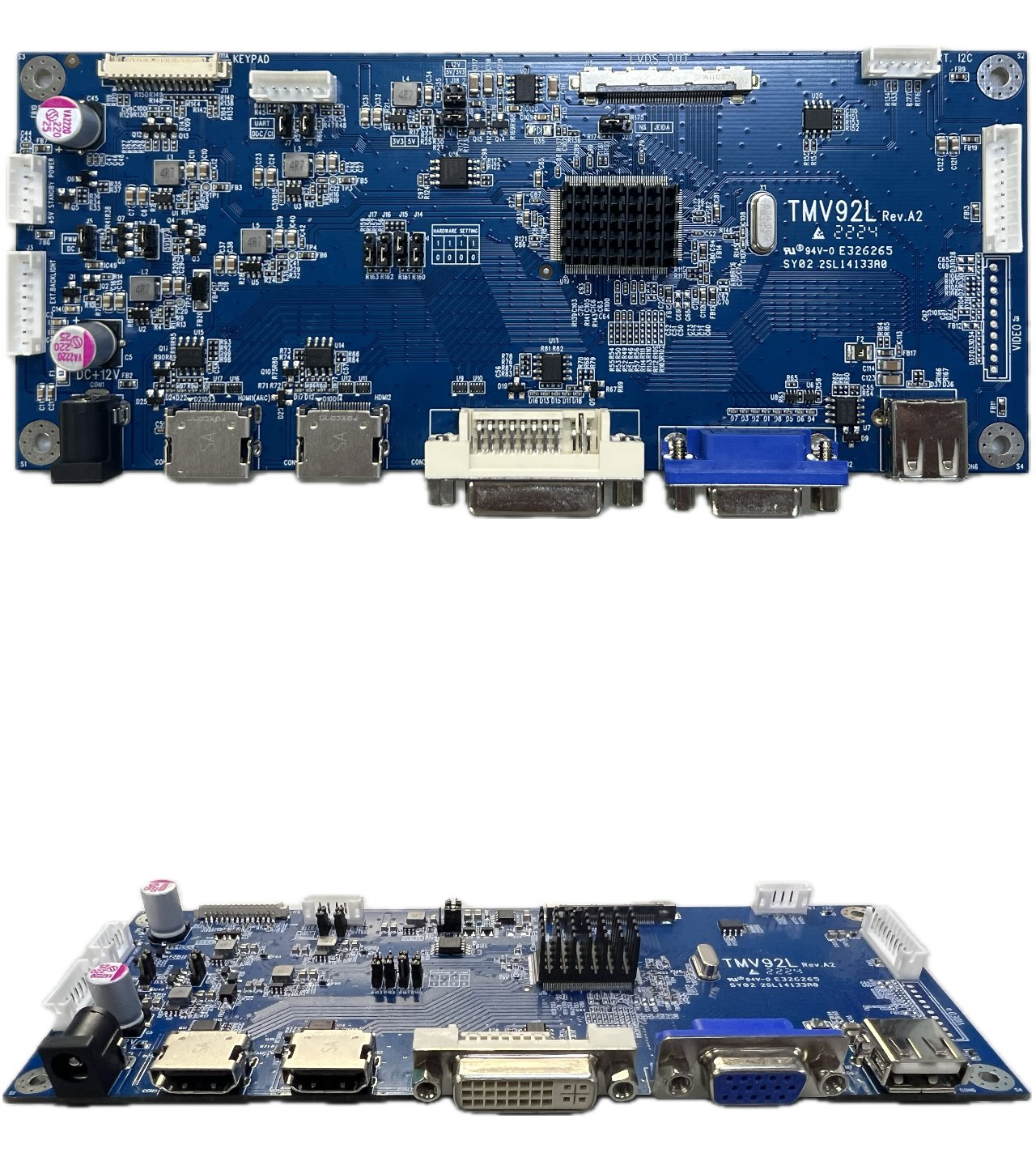

TMV92L


TMV92L


★ DC Input : +12VDC / 3A
★ Panel Power : 3.3V , 5V , 12V
★ Size : 180(L) x 75(W) x 15(H) mm

Input:

★ VGA x 1 , video input resolution up to 1920x1080@60Hz
★ DVI(Single-Link) x 1 , video input resolution up to 1920x1080@60Hz
★ HDMI 1.4a x 2 , video input resolution up to 1920x1080@60Hz
★ USB 2.0 x 1 , Supports media player & OTG for FW upgrade

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ Single/Dual link 8/10-bits LVDS

Other Support:

★ CVBS/YPbPr Input (HW Option)
★ Audio (HW Option)
★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ Multi-Panel Selectable
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

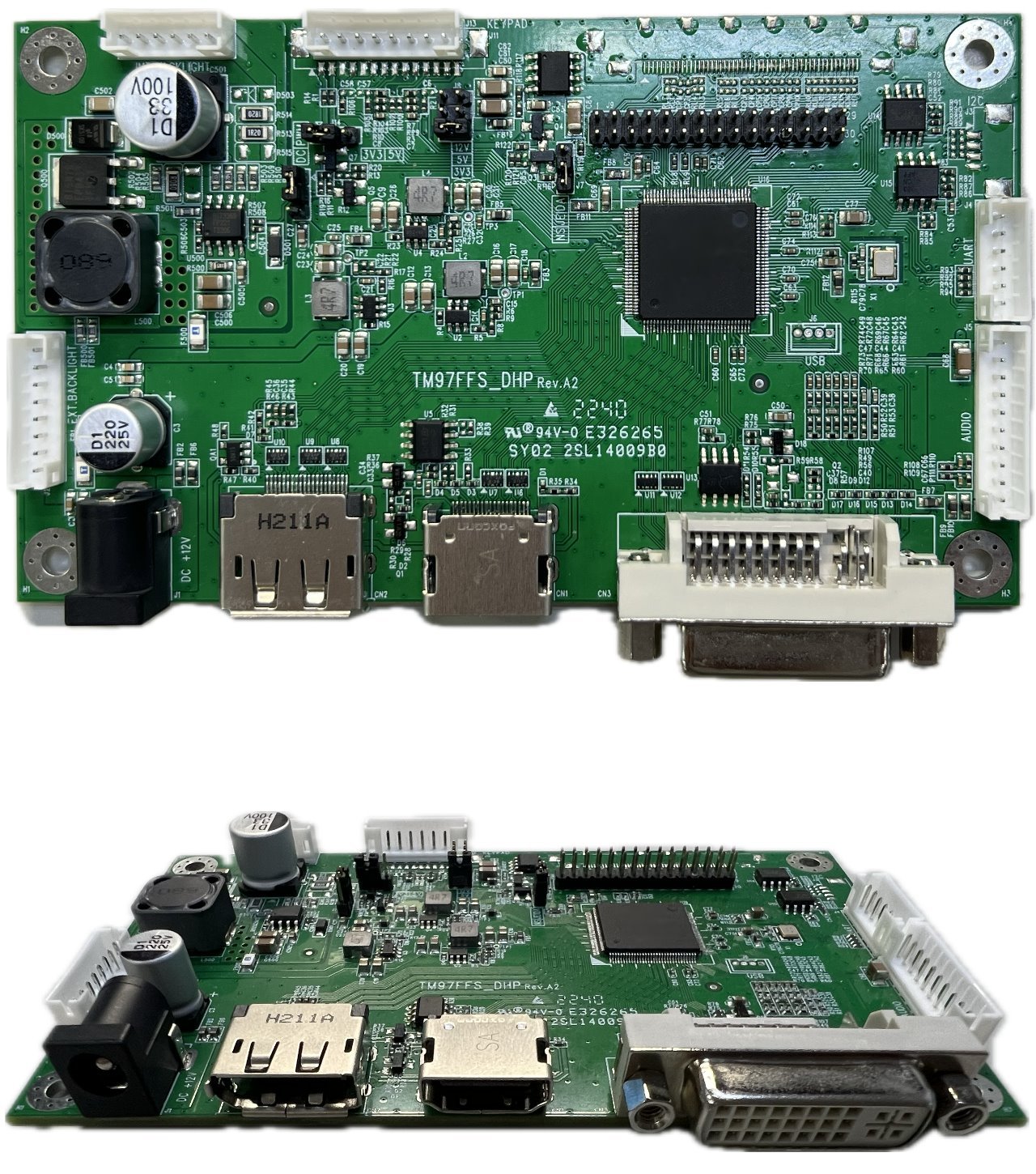

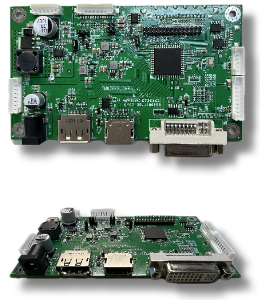

TM97FFS_DHP


TM97FFS_DHP


★ DC Input : +12VDC / 3A
★ Panel Power : 3.3V , 5V , 12V
★ Size : 120(L) x 70(W) x 15(H) mm

Input:

★ DVI-I(Single-Link) x 1 , combines digital and analog in the same connector , video input resolution up to 1920x1080@60Hz
★ HDMI 2.0 x 1 , video input resolution up to 1920x1080@60Hz
★ DisplayPort 1.4(HBR2) x 1 , video input resolution up to 1920x1080@60Hz

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ Single/Dual link 8bits LVDS
★ eDP HBR supports up to 4-lane with 2.7Gbps link rate
★ LED backlight driver support up to 4 LED strings(20W Max.)

Other Support:

★ Audio (HW Option)
★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

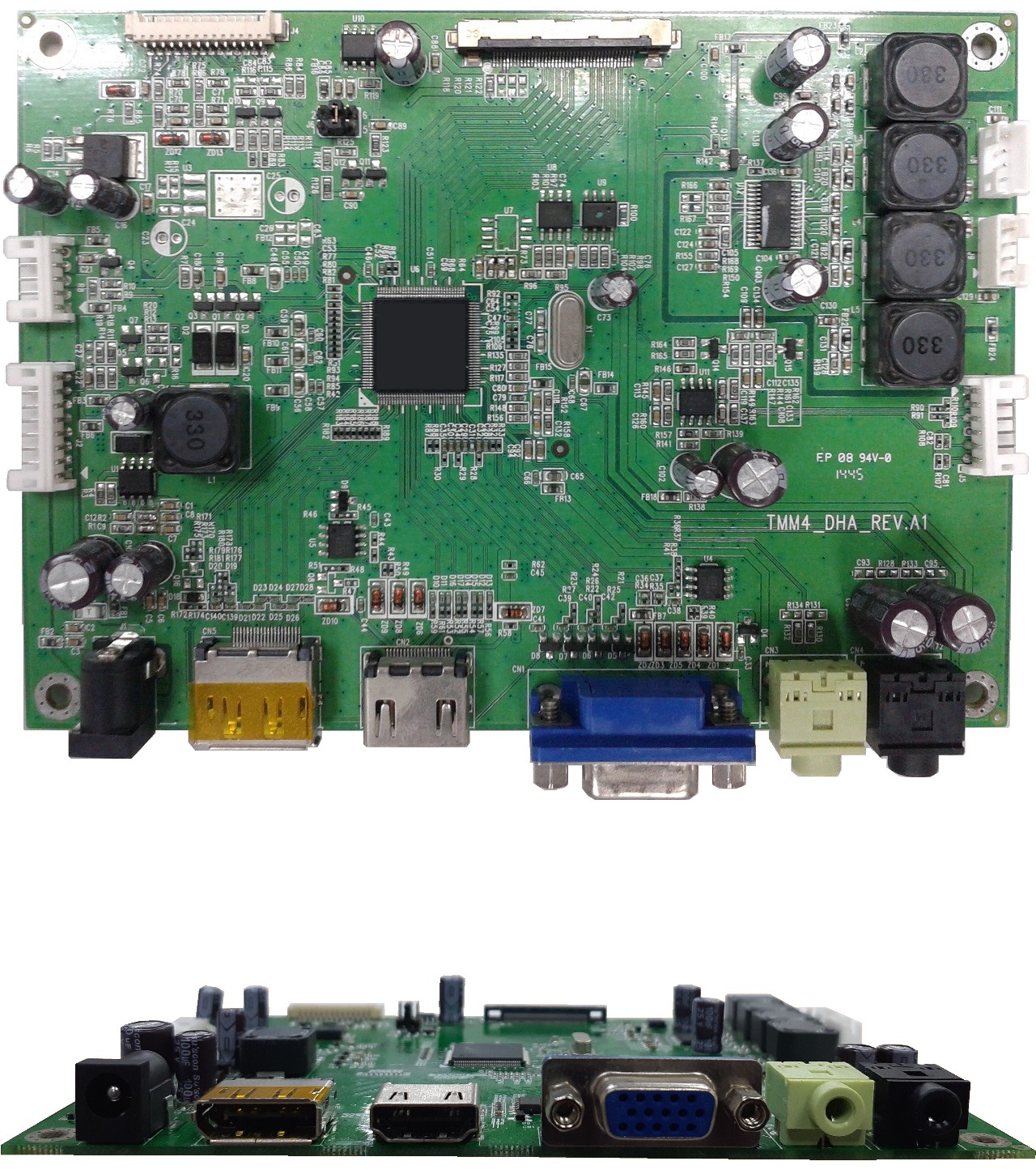

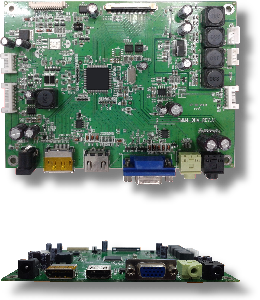

TMM4_HDA


TMM4_HDA

★ DC Input : +12VDC / 3A
★ Panel Power : 3.3V , 5V , 12V
★ Size : 145(L) x 105(W) x 15(H) mm

Input:

★ VGA x 1 , video input resolution up to 1920x1080@60Hz
★ HDMI 1.3a x 1 , video input resolution up to 1920x1080@60Hz
★ DisplayPort 1.2a x 1 , video input resolution up to 1920x1080@60Hz
★ Ø3.5 Phone Jack x 1 (Line-in)

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ Single/Dual link 8bits LVDS
★ Earphone Output (3.5 mm Jack)
★ SPK: 5W/5W @ 1Vrms THD + N:10%

Other Support:

★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

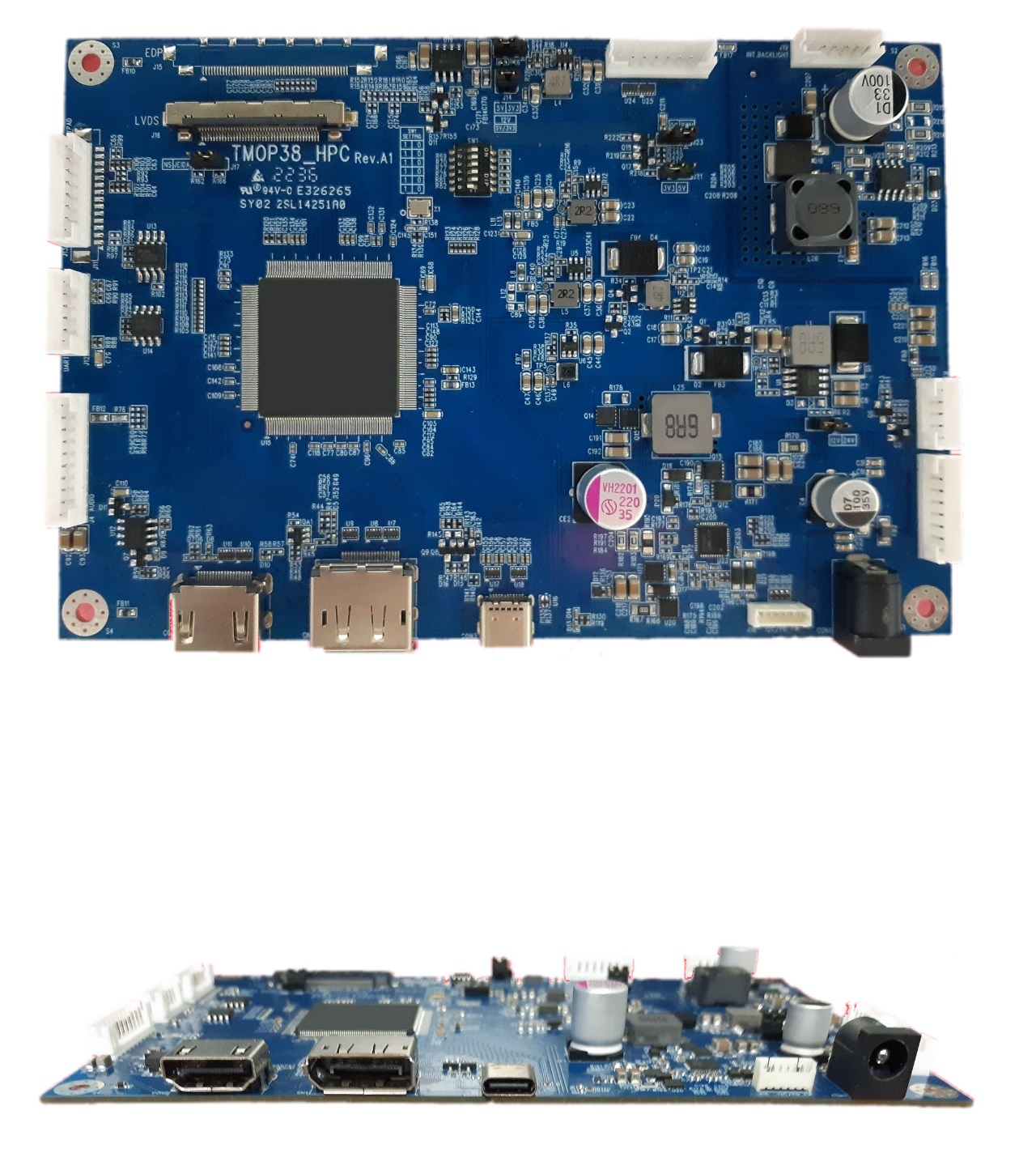

TMOP38_HPC


TMOP38_HPC


★ DC Input : +12VDC / 3A
★ Panel Power : 3.3V , 5V , 12V
★ Size : 155(L) x 105(W) x 15(H) mm

Input:

★ HDMI 1.4 x 1 , video input resolution up to 1920x1080@60Hz
★ DisplayPort 1.4(HBR2) x 1 , video input resolution up to 1920x1080@60Hz
★ USB Type-C Upstream port x 1 , DP Alt. Mode 1.0(Video+Data), PD Charging(Up To 40W)

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ Single/Dual link 8/10-bits LVDS
★ eDP HBR supports up to 4-lane with 2.7Gbps link rate
★ LED backlight driver support up to 4 LED strings(20W Max.)

Other Support:

★ Audio (HW Option)
★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ Multi-Panel Selectable
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

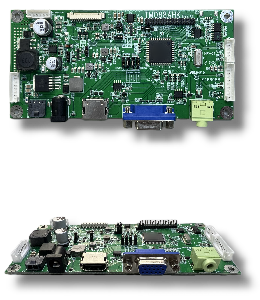

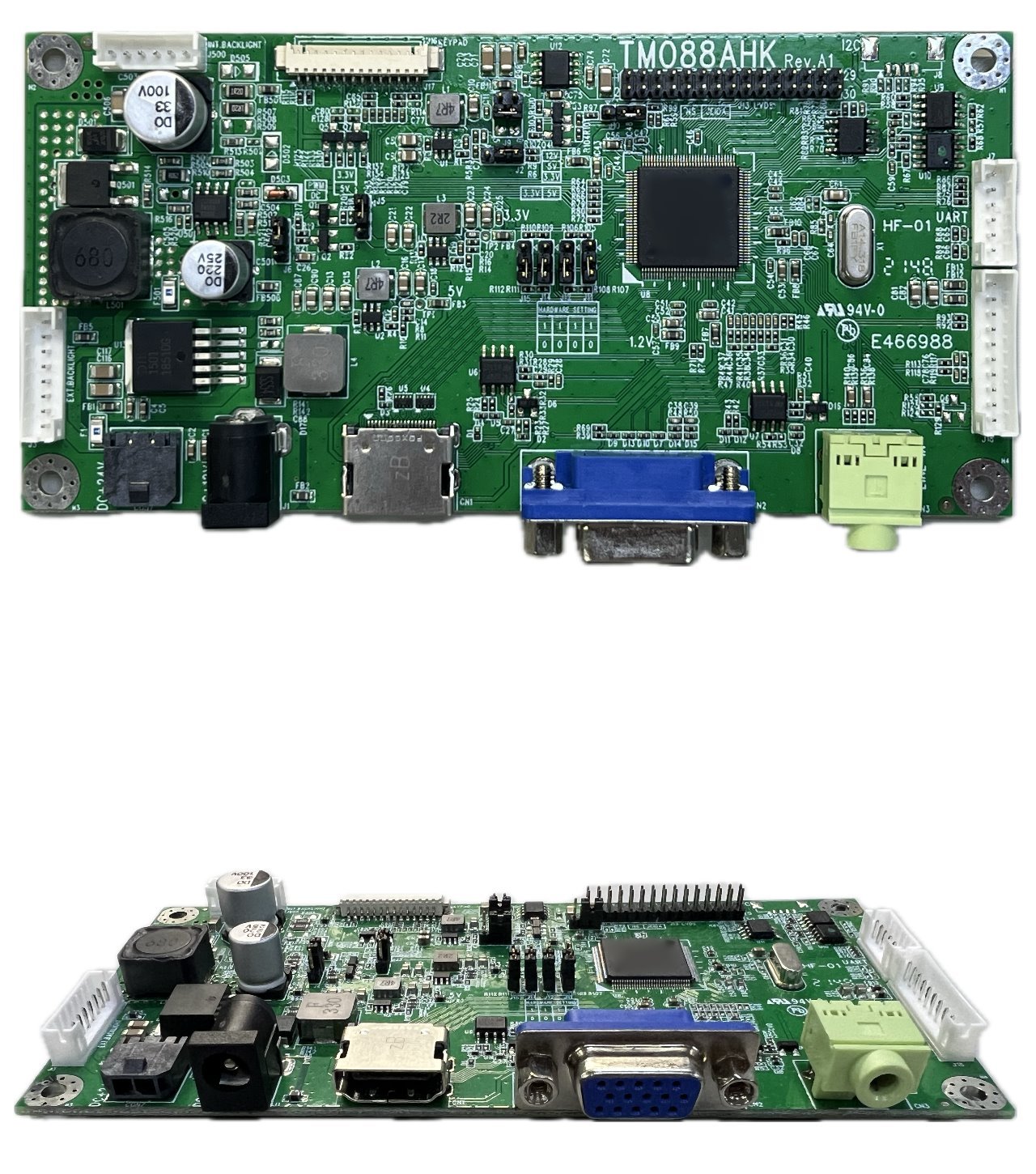

TMO88AHK


TMO88AHK

★ DC Input : +12VDC(+24VDC) / 3A
★ Panel Power : 3.3V , 5V , 12V
★ Size : 135(L) x 66(W) x 15(H) mm

Input:

★ VGA x 1 , video input resolution up to 1920x1080@60Hz
★ HDMI 1.3 x 1 , video input resolution up to 1920x1080@60Hz
★ Ø3.5 Phone Jack x 1 (Line-in)

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ Single/Dual link 8bits LVDS
★ LED backlight driver support up to 4 LED strings(20W Max.)

Other Support:

★ Audio (HW Option)
★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ Multi-Panel Selectable
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

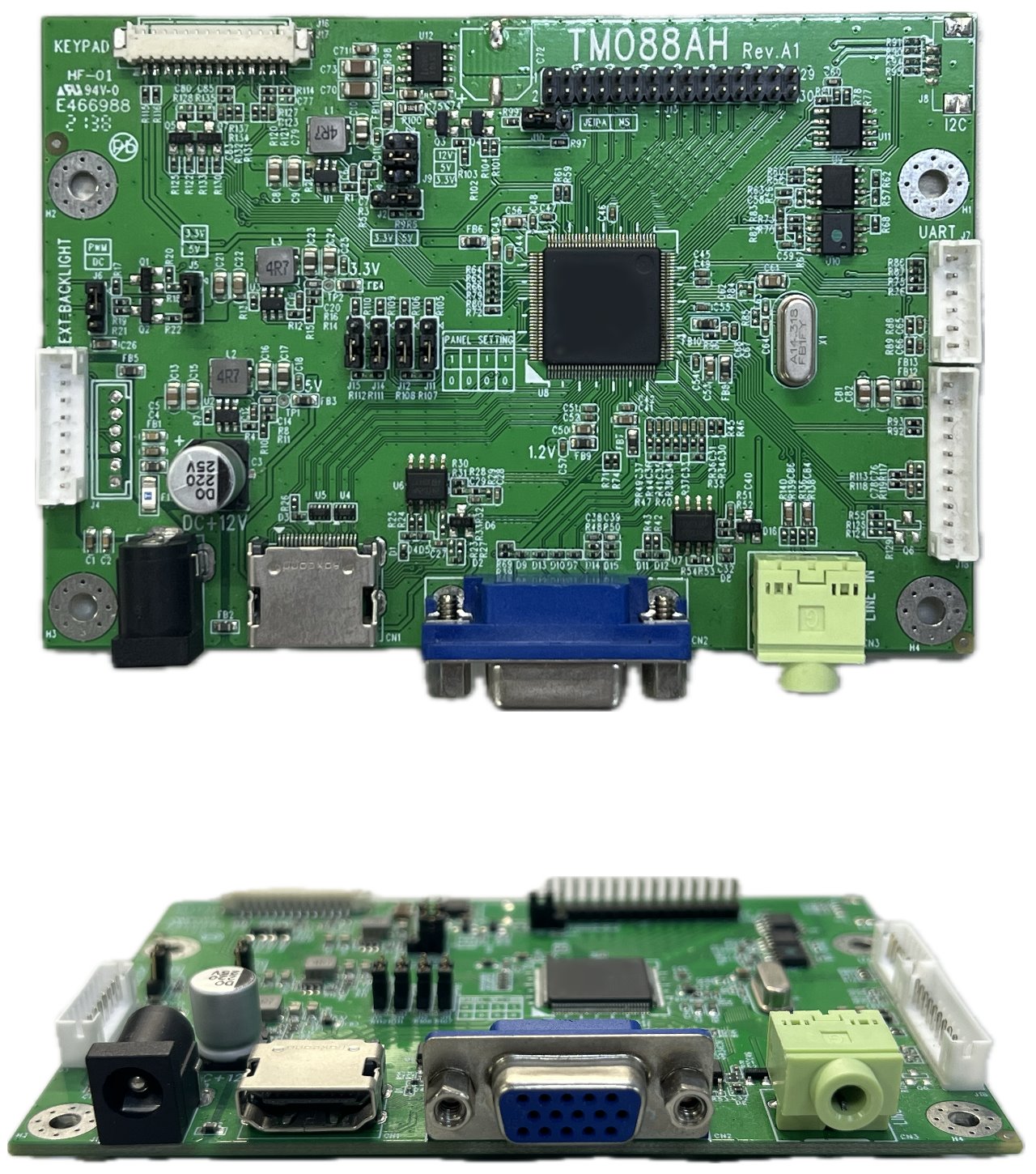

TMO88AH


TMO88AH

★ DC Input : +12VDC / 3A
★ Panel Power : 3.3V , 5V , 12V
★ Size : 110(L) x 75(W) x 15(H) mm

Input:

★ VGA x 1 , video input resolution up to 1920x1080@60Hz
★ HDMI 1.3 x 1 , video input resolution up to 1920x1080@60Hz
★ Ø3.5 Phone Jack x 1 (Line-in)

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ Single/Dual link 8bits LVDS

Other Support:

★ Audio (HW Option)
★ RS232/RS485 Control -- 1 to 250 Link (HW Option)
★ Keypad Control (HW Option)
★ IR Remote Control (HW Option)
★ Multi-Panel Selectable
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

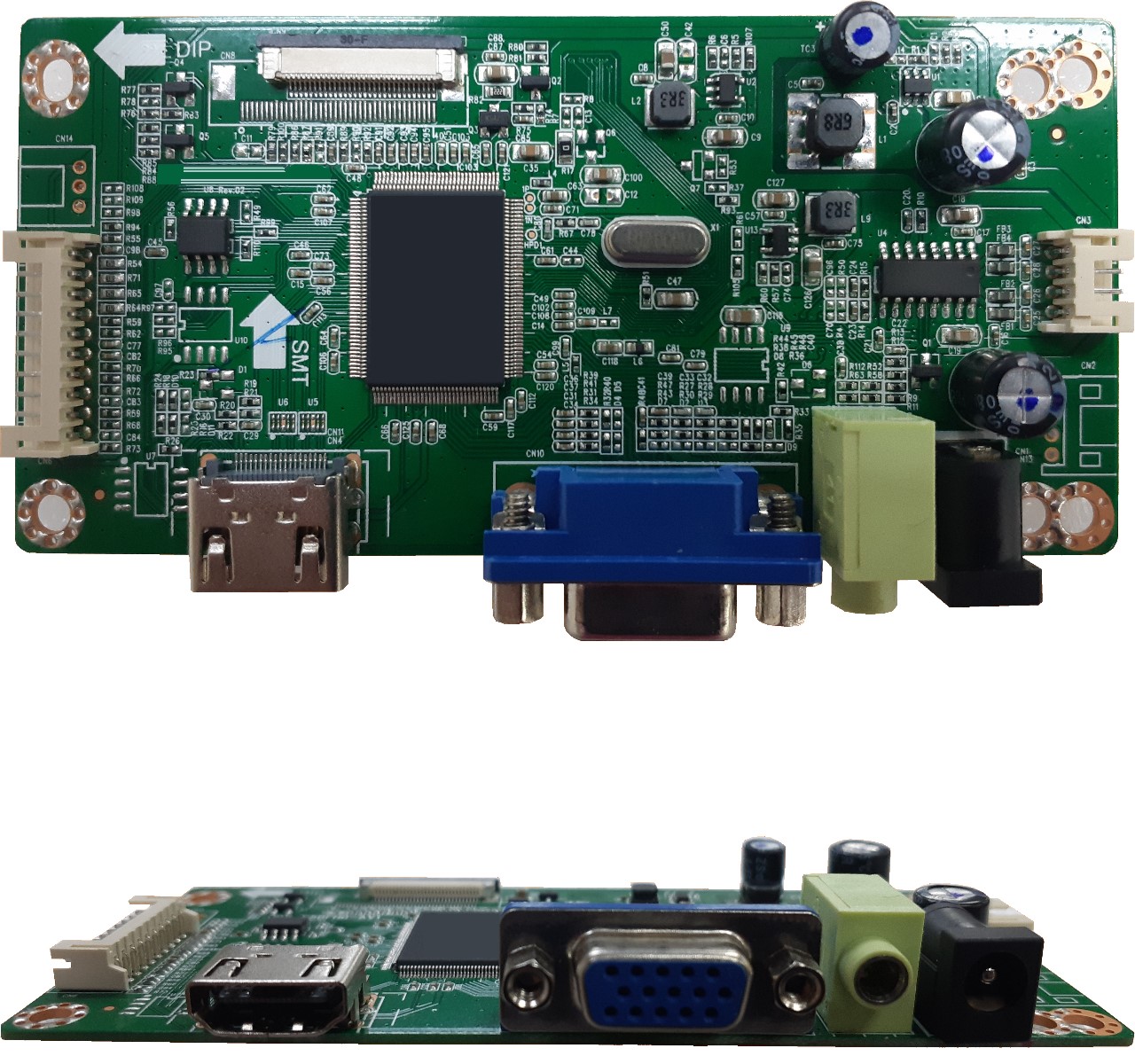

TMO52AH


TMO52AH

★ DC Input : +12VDC / 3A
★ Panel Power : 3.3V
★ Size : 113(L) x 55.1(W) x 15(H) mm

Input:

★ VGA x 1 , video input resolution up to 1920x1080@60Hz
★ HDMI 1.4 x 1 , video input resolution up to 1920x1080@60Hz
★ Ø3.5 Phone Jack x 1 (Line-in)

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ eDP HBR supports up to 2-lane with 2.7Gbps link rate
★ SPK: 5W/5W @ 1Vrms THD + N:10%

Other Support:

★ Keypad Control (HW Option)
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

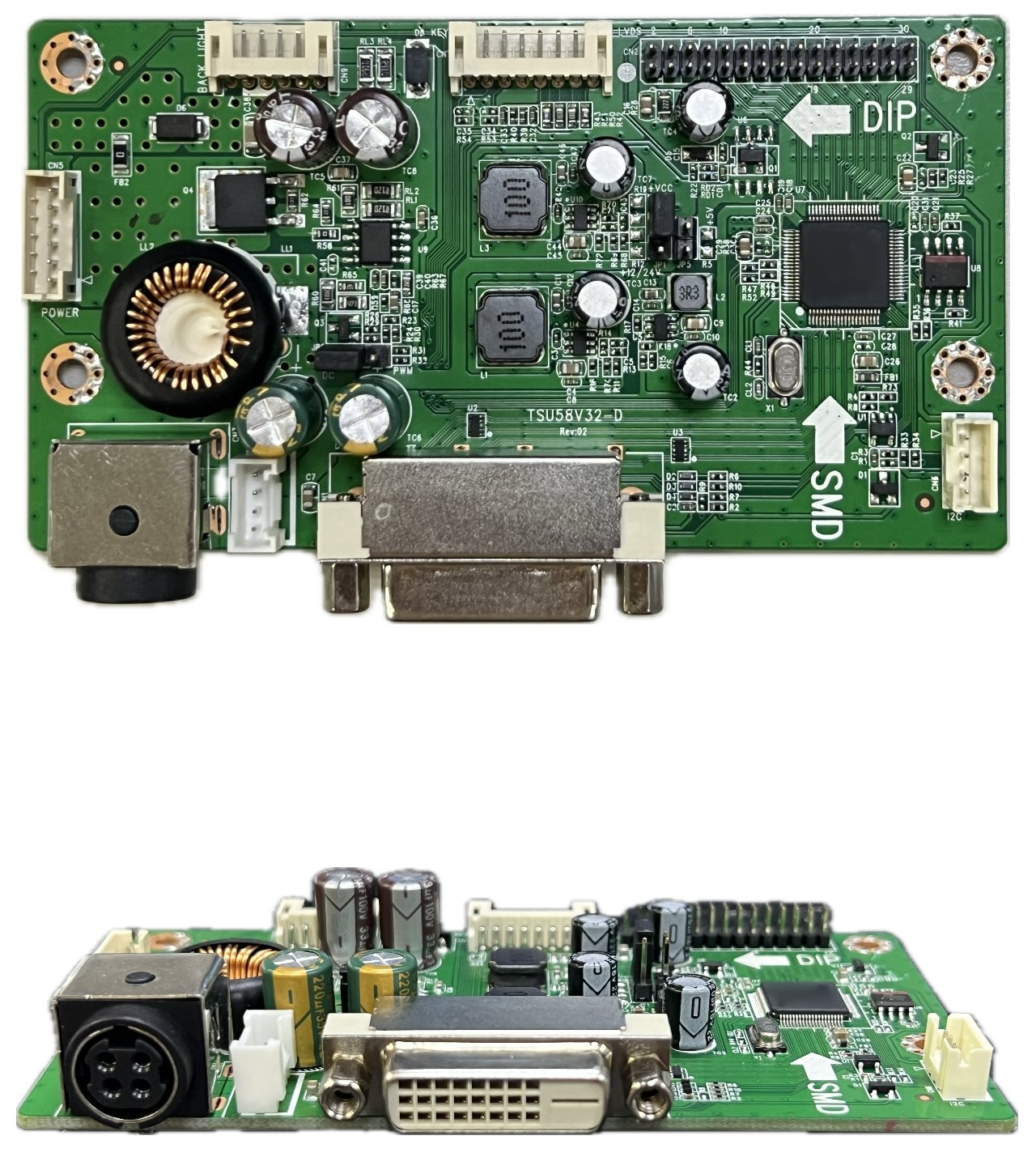

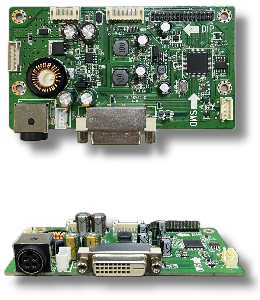

TSU58V32-D


TSU58V32-D

★ DC Input : +24VDC / 4A
★ Panel Power : 12V(Default) , 24V , 5V
★ Size : 110(L) x 60(W) x 17(H) mm

Input:

★ DVI(Single-Link) x 1 , video input resolution up to 1920x1080@60Hz

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ Single/Dual link 8bits LVDS
★ LED backlight driver support up to 4 LED strings(35W Max.)

Other Support:

★ Keypad Control (HW Option)
★ General Purpose Input/Output (HW Option)
★ Firmware Customization

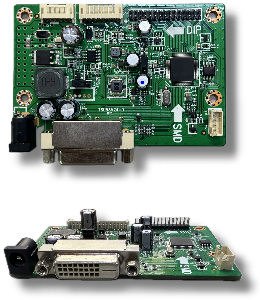

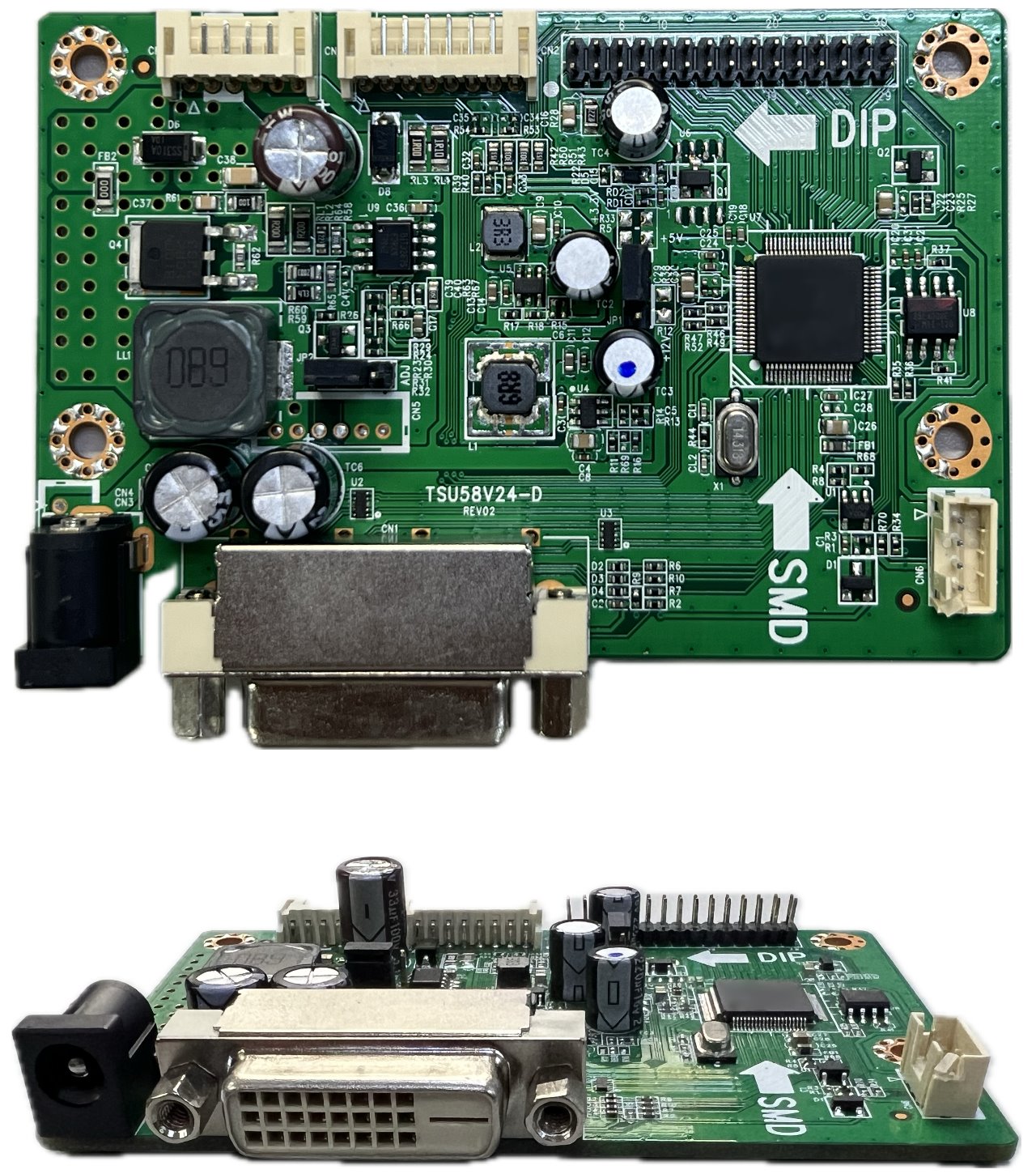

TSU58V24-D


TSU58V24-D

★ DC Input : +12VDC / 3A
★ Panel Power : 5V(Default) , 12V
★ Size : 90(L) x 60(W) x 15(H) mm

Input:

★ DVI(Single-Link) x 1 , video input resolution up to 1920x1080@60Hz

Output:

★ Supports panel resolution up to 1920x1080@60Hz
★ Single/Dual link 8bits LVDS
★ LED backlight driver support up to 4 LED strings(20W Max.)

Other Support:

★ Keypad Control (HW Option)
★ General Purpose Input/Output (HW Option)
★ Firmware Customization
